Bundling/Insulating/Marking
KTB E TWIST SPOT
The electrical spot taping machine KTB E TWIST SPOT, based on the tried-and-tested technology of the KTB E PLUS, is used to fix open ends on twisted-pair cables.
Technical data
| Application: | Fixing of open ends on twisted-pair cables |
| Bundle diameter: | 2 - 13 mm |
| Tape width: | 9 – 19 mm |
| Material: | All conventional adhesive tapes |
| Tape core diamete: | Max. 170 mm |
| Connection: | Single-phase 120-230V, 50/60Hz, 6 bar compressed air |
| Weight: | 45kg |

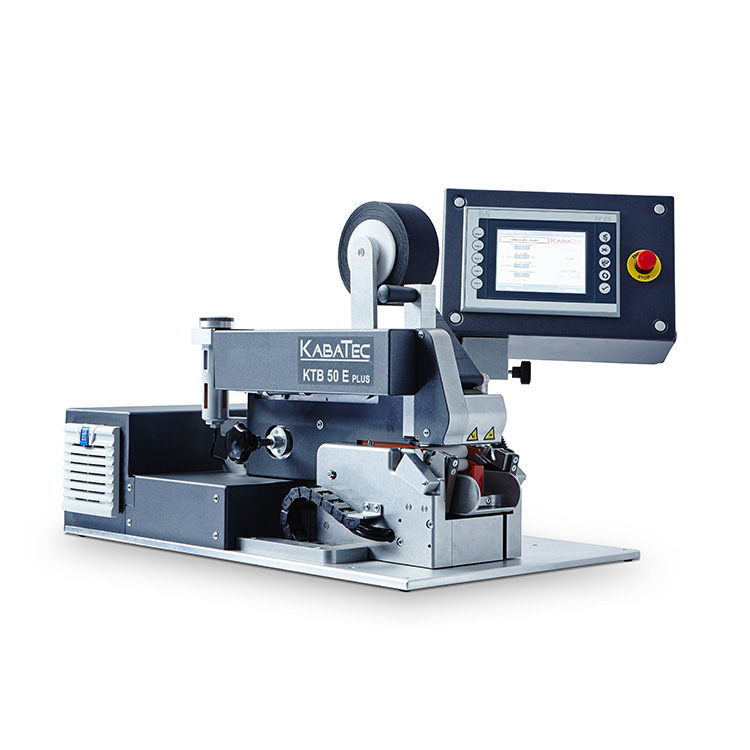

KTB 50 E PLUS
Technical data
| Application: | Bundling, fixating, insulating, marking, labeling Particularly suitable for small cross sections, however also suitable for large cross sections |
| Bundle diameter: | (or as per customer requirements) |
| Tape width: | 9-50 mm (or as per customer requirements) |
| Material: | Any conventional tape |
| Dimensions: | 660mm / 600mm / 460mm |
| Connection: | Single-phase 120-230V, 50/60Hz, 6 bar |
| Weight: | 41kg |
