Taping
KTHB Smart
KABATEC’s smallest stationary taping tool with minimal space requirements. Made for fast, easy handling thanks to an open winding head controlled with a foot pedal.
Technical data
| Tape material: | all conventional adhesive tapes |
| Tape width: | 9-19 mm, optional 25 mm |
| Tape core diameter: | 1,5″ i 3″ |
| Tape outer diameter: | max. 110mm |
| Taping diameter: | 3-25 mm |
| Power supply: | 110-240V, 60 Hz |
| Rotational speed: | 120 – 380 rpm |
KTL 10
The KTL 10 program-guided taping machine is ideally suited to the taping of cable harnesses and small modules with a maximum tape length of 1,000 mm.
Technical data
| Tape material: | all conventional adhesive tapes |
| Tape width: | 9-19 mm |
| Tape core diameter: | 1,5″ i 3″ |
| Tape outer diameter: | max. 180mm |
| Taping diameter: | 20 mm |
| Power supply: | 110-240V, 50 Hz, 6 bar compressed air |
| Rotational speed: | 100 – 1000 rpm |
DRAINWIRE
Tape your shielded wire with your configuration on demand. Wrapping of shield tape and cover tape together with a drainwire in one process.
Technical data
| Tape material: | Most conventional tapes |
| Tape width: | 19 mm |
| AluminumfFoil width: | 19 mm |
| Tape outer diameter: | 120 mm |
| Aluminum foil outer diameter: | 120 mm |
| Tape and aluminum foil core diameterr: | 1,5" |
| Power supply: | 110-240V, 50 Hz, 6 bar compressed air |
| Rotational speed: | 100 – 1000 rpm |
KT 800
The KT 800 combines minimal cycle times with maximum precision, thereby creating new opportunities in the field of taping technology. Due to the high degree of automation and the extremely short processing times, this machine sets new standards in terms of efficiency.
Technical data
| Tape material: | Most conventional tapes |
| Tape width: | 9-19 mm |
| Tape length: | 60 – 500 mm (optional 1,000 mm), depending on the grippersystem |
| Tape outer diameter: | 180 mm |
| Cable harness diameter: | Up to 10 mm |
| Tape core diameter: | 1.5" and 3" |
| Power supply: | 110-240V, 50 Hz, 6 bar compressed air |
| Rotational speed: | 100 – 2000 rpm |
KTHB Mini
The KTHB Mini is a mobile, electric taping tool for use on assembly boards. This makes it possible to tape longer segments quickly and easily.
Technical data
| Tape material: | all conventional adhesive tapes |
| Tape width: | 9-19 mm, optional 25 mm |
| Tape core diameter: | 1,5 „i 3″, optional 1,25 “ ili 1″ |
| Tape outer diameter: | max. 110mm |
| Taping diameter: | 3-20 mm |
| Power supply: | 110-240V, 60 Hz |
| Rotational speed: | 120 – 280 rpm |
KTR 10

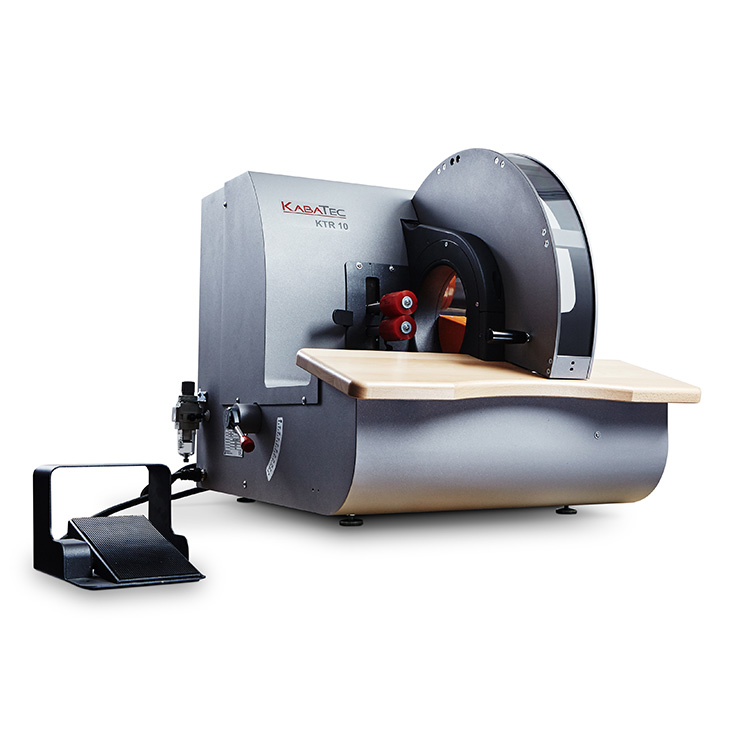

The KTR 10 is a standard table-top taping machine. Small, quick, reliable, cost-effective and thus absolutely economical: the perfect machine for efficient and cost-effective production
Technical data
| Application: | Taping of simple or pre-fixed cable harnesses |
| Tape material: | all conventional adhesive tape |
| Tape width: | 9–19 mm |
| Tape outer diameter: | up to 180 mm |
| Tape core diameter: | 1.5″ and 3″ |
| Rotational speed: | 100 – 1000 U/min, speed control continuously via foot pedal |
| Winding head: | open or closed placed automatically in tape attachment position |
| Feed rate: | 0 – 70 rpm, continuously adjustable roll-feed |
| Feed operation: | pneumatic |
| Cable harness diameter: | up to 20 mm |
| Connection: | 1-phase 230V/50Hz, 6 bars compressed-air |
| Dimensions (W × H × D): | 590 x 600 x 730 mm |
| Weight: | 90 kg |
KTR 160
Taping cable harnesses and modules; e.g: (door cable harnesses, mirror wiring, battery cable harnesses, roof cable harnesses, etc.). Taping lengths and feed rates can be programmed in individual winding steps and processed in succession, enabling a wide variety of cable harness geometries.
Technical data
| Application: | compact machine for cable harnesses with a wide variety of requirements |
| Tape material: | all conventional adhesive tape |
| Tape width: | 9–19 mm |
| Tape outer diameter: | up to 180 mm |
| Tape core diameter: | 1.5″ and 3″ |
| Rotational speed: | 100 – 1000 rpm, programmable |
| Winding head: | open or closed placed automatically in tape attachment position |
| Feed rate: | 0 – 50 mm/rotation, programmable belt-feed |
| Tape-end detection: | contactless |
| Cable harness diameter: | up to 20 mm |
| Connection: | 3-phase 230 V / 400V-50 Hz, 6 bar compressed air |
| Dimensions (W × H × D): | 1449 x 1340 x 835 mm |
| Weight: | 380 kg |
