Crimping Machines

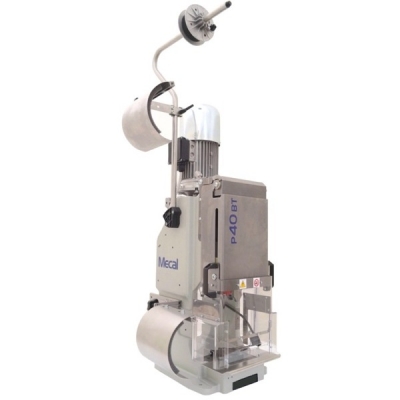

P040
The P040 Crimping Press is available either in semi-automatic (for bench-top use BT) configuration or in full automatic (integrated into a cut and strip machine) configuration. It can be coupled to all mini-applicators and applicators with the standard T-coupling and to all two-post crimping dies with a 20mm-diameter coupling shank. The P040 is normally delivered with a 135.8mm +/- 0.02mm crimping height ( measured from the applicator base plate to the press T-coupling when at Bottom Dead Center).
Technical data
| ID: | P040 |
| POWER: | 1,87Kw (2,5HP) |
| CRIMPING HEIGHT: | 135.8mm (5.346”) |
| FORCE: | 4000Kg (8900lb) |
| WEIGHT: | 148Kg (326lb) |
| VOLTAGE: | 400V / 230V / 480V |
| DIMENSIONS: | W360xH1050xD400 |
TT
The TT Crimping Machine is available either in semi-automatic (for bench-top use) configuration or in full automatic (integrated into a cut and strip machine) configuration. Very compact and light, its spheroidal cast iron, one-piece structure offers the highest rigidity for a very stable crimping height values. The standard stroke is 40mm, but other different strokes are available upon request. The 135.8mm ± 0.02mm crimping height (measured from the applicator base plate tot the press T-coupling when at Bottom Dead Center) allows the TT to accept all the mini-style applicators fitted with the standard T-coupling.
Technical data
| ID: | TT |
| POWER: | 0,55Kw (0,75HP) |
| CRIMPING HEIGHT: | 135,8mm (5,34") |
| FORCE: | 1500Kg (3310lb) |
| WEIGHT: | 41Kg (95,6lb) |
| DIMENSIONS: | W200xH580xD300 |

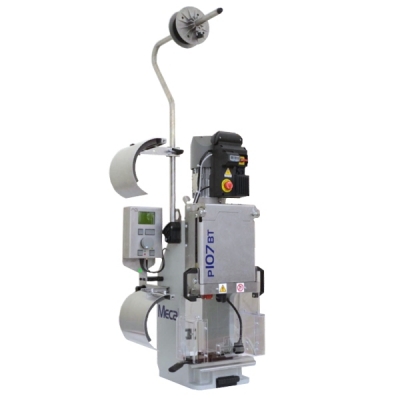

P107C
The P107C Crimping Press is available either in semi-automatic (for bench-top use BT) configuration or in full automatic (integrated into a cut and strip machine) configuration. The P107C has a standard stroke of 40mm, and upon request a variable stroke version is available : in this configuration the stroke can be set between 20 and 40mm, in 5mm increments. Other different strokes are available upon request. The standard crimping height (measured from the applicator base plate to the press T-coupling when at Bottom Dead Center) in 135.8mm ± 0.02mm, but different kits to adapt it to different-size applicators are available upon request.
Technical data
| ID: | P107C |
| POWER: | 0,55Kw (0,75HP) single phase 0,75Kw (1HP) trhee phase |
| CRIMPING HEIGHT: | 135,8mm (5,34") |
| FORCE: | 2000Kg (4450lb) |
| WEIGHT: | 85Kg (189lb) |
| DIMENSIONS: | W280xH860xD310 |

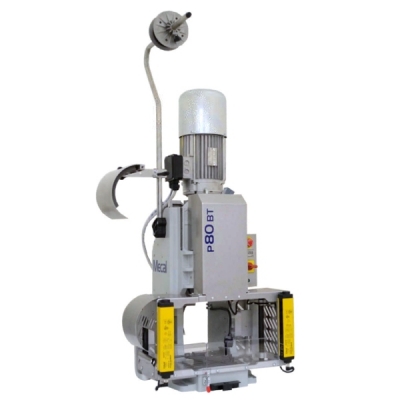

P080
The P080 Crimping Press is available either in semi-automatic (for bench-top use BT) configuration or in full automatic (integrated into a cut and strip machine) configuration. It can be coupled to all mini-applicators and applicators with the standard T-coupling and to all Two-Post Crimping Dies with a 20mm-diameter coupling shank. The standard variable stroke can be adjusted either to 40 or 50mm, with other strokes available upon request. Fitted with a self-braking electric motor, the P080 is normally delivered with a 135.8mm ± 0.02mm crimping height (measured from the applicator base plate to the press T-coupling when at Bottom Dead Center), but the operator can set the crimping height at 212mm with simple tools and an adapting kit (shank coupling) supplied with the press.
Technical data
| ID: | P080 |
| POWER: | 4.2KW (5.5 HP) |
| CRIMPING HEIGHT: | 135.8mm (5.34”) mini e magnum 212mm (8.34”) stampi |
| FORCE: | 8000Kg (17800lb) |
| WEIGHT: | 166Kg (365lb) |
| DIMENSIONS: | W380mm x H1100mm x D420mm |
