Used & demo machines
Komax Gamma 450 - Special offer
Compact and fully automatic crimp-crimp machine.
Technical data
| Wire cross section: | 0.13 - 4 mm2 (AWG 26 - 12) |
| Wire outer diameter max.: | 3.9 mm |
| Wire length, single-sided processing min. | 60 mm |
| Wire length, processing on both sides min. | 60 mm |
| Wire length max. | 65000 mm |
Description: Showroom machine. Never used, new, on sale.
Availability: 4 units.
Send inquiry
Komax Zeta 620 - Special offer
Harness manufacturing and cable labeling machine.
Technical data
| Wire cross section: | 0.5 - 6 mm2 (AWG 20 - 10) |
| Wire outer diameter max.: | 6 mm |
| Shortest wire length for one-sided processing | 60 mm |
| Shortest wire length for two-sided processing | 240 mm |
| Wire length (standard tray) max. | 4000 mm |
| Wire changer (in steps of 6 wires) | 24 |
Description: Showroom machine. Never used, new, on sale.
Availability: 1 unit.
Send inquiry
Komax Zeta 640 - Special offer
Harness manufacturing and cable labeling machine.
Techincal data
| Wire cross section: | 0.22 - 6 mm2 (AWG 24 - 10) |
| Wire outer diameter max.: | 6 mm |
| Shortest wire length for one-sided processing | 85 mm |
| Shortest wire length for two-sided processing | 240 mm |
| Wire length (standard tray) max. | 3000 mm |
| Wire changer (in steps of 6 wires) | 36 |
Description: Showroom machine. Never used, new, on sale.
Availability: 1 unit.
Send inquiry
Kappa 340 without RIU - Special offer
Wire cutting and stripping machine.
Technical data
| Wire cross section: | 0.22 – 70 mm² (AWG 22 – 2) |
| Wire outer diameter max.: | 16 mm (0.63 in) |
| Wire draw-in speed max. | 4 m/s (157.5 in/s) |
| Wire length min. | 1 mm |
| Wire length max. | 800000 mm |
| Strip lengths, full stripping side 1 max. | 180 mm |
| Strip lengths, full stripping side 2 max. | 50 mm |
Description: Showroom machine. Never used, new, on sale.
Availability: 1 unit.
Send inquiry
Seal Application Set for Komax seal module MCI 76X, S1440 and S1441
Variants
| Var. 034 | |
| Description: Second-hand equipment in excellent condition. | Availability: 1 unit |
| Var. 052 | |
| Description: Second-hand equipment in excellent condition. | Availability: 1 unit |
| Var. 111 | |
| Description: Second-hand equipment in excellent condition. | Availability: 1 unit |
Send inquiry

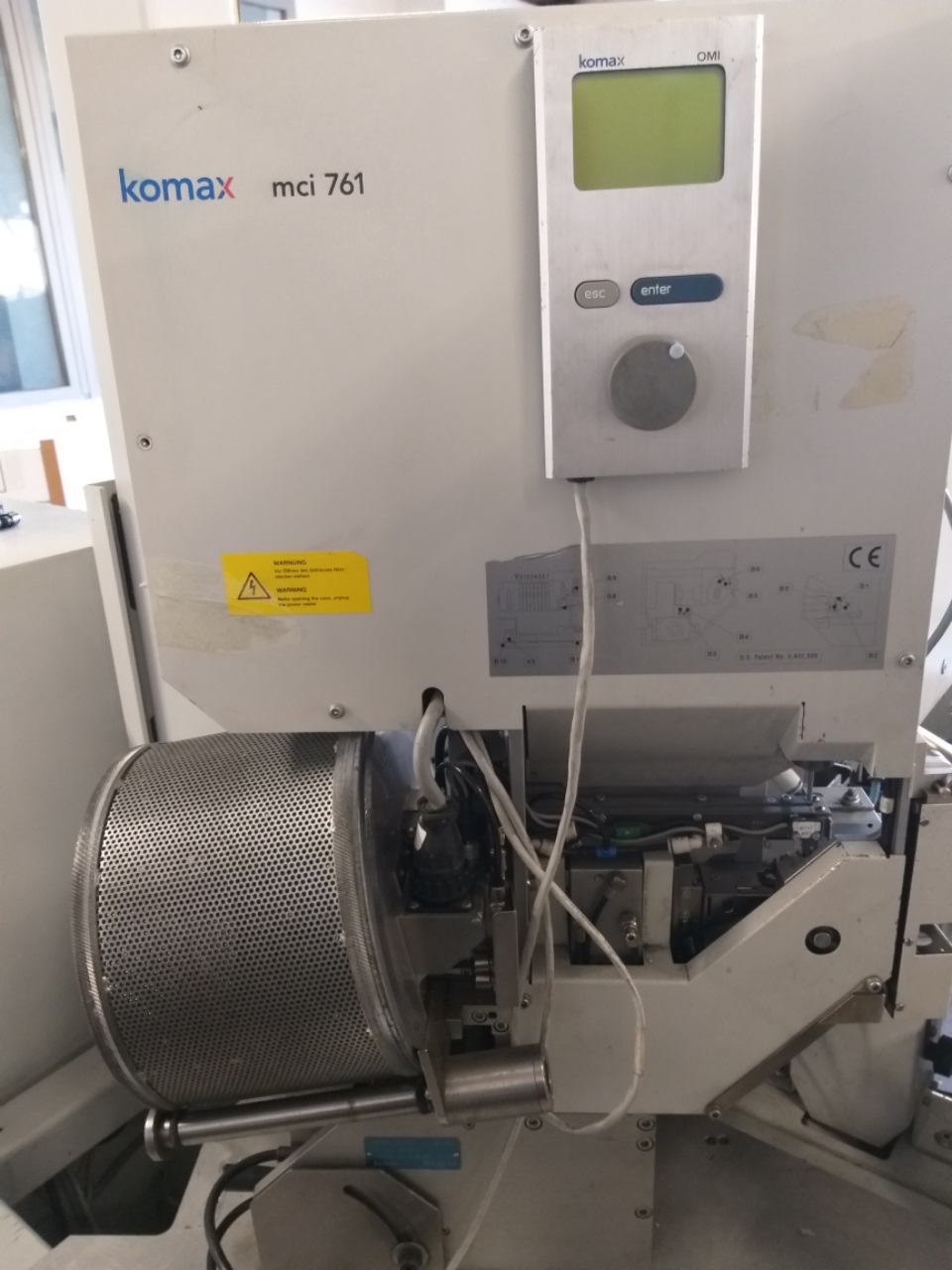

Komax MCI 761 – seal module
The mci 761 is a high performance seal module for applying seals to individual conductors.
Technical data
| Seal diameter: | max. 10 mm |
| Seal length: | max. 11 mm |
| Application output: | 4500 seals/h |
| Pneumatic system: | 5-8 bar |
| Dimensions: | 225x740x500 mm |
| Weigth: | approx. 30 Kg |
Description: Second-hand equipment in excellent condition
Availability: 1 unit.
Send inquiry
Kappa 315
Cutting force, high volume output and advanced sensor technology make the Kappa machines the number one choice for automated cutting and stripping, even for smaller wire cross-sections. The machines can be used very efficiently thanks to their simple, intuitive control elements.
Technical data
| Wire cross-section: | 0.05 – 10 mm² (AWG 30 – 8) |
| Max. outer diameter: | 10 mm (0.4 in.) |
| Max. wire transport speed: | 2.0 m/s (78.75 in./s) |
| Accessories: | |
| V blades | |
| Wire transport system - rollers | |
| Wire guides (left) - D = 2mm, 4mm, 6mm | |
| Universal wire guide(right) - D = 2-12 mm | |
| Wire straightening unit (vertical) | |
| Air system for ejection of residual insulation | |
| Automatic diameter detection |
Description: DEMO MACHINE
Availability: 1 unit
Send inquiry
Komax Gamma 333
Purpose: Fully automatic crimp machine
Wire cross-section: 0.013 mm²-5 mm²
Description: Second-hand equipment in good condition.
State: In good condition, located in Zlatar Bistrica/Croatia.
Availability: 1 unit
Send inquiry
Cosmic 32M
Purpose: Stripping machine with a quicker cycle time, able to strip wide variety of wires with high precision.
Technical data
| Wire size: | AWG#12-AWG#32 |
| Stripping length: | 1.5 – 25.0 mm |
| Partial stripping length: | min. 1.0 mm |
| Cable types | halogen-free, rubber, PVC,.. |
| Power supply | AC 100V – 240V (40VA) |
| Weight | 4.5 kg |
Description: SHOWROOM MACHINES
Availability: 1 unit
Send inquiry
AV.TWIST.15
Stripping and twisting machine. Outer diameter up to 0.18“ (4,5 mm). Stripping length from 0.06“ (1,5 mm) up to 0.60” (15,0 mm).
Description: SHOWROOM MACHINES
Availability: 1 unit
Send inquiry
Cosmic 32M CDD
Purpose: Stripping machine with a quicker cycle time, able to strip wide variety of wires with high precision with CDD (conductor damage detector).
Technical data
| Wire size: | AWG#12-AWG#32 |
| Stripping length: | 1.5 – 25.0 mm |
| Partial stripping length: | min. 1.0 mm |
| Cable types | halogen-free, rubber, PVC,.. |
| Weight | 4.5 kg |
Description: SHOWROOM MACHINE
Availability: 1 unit
Send inquiry alphaJET mondo
The continuous inkjet alphaJET mondo is the perfect combination of performance, quality and low cost. Lowest running costs and the absolute safe management of consumables will satisfy you.
Technical data
| Line speed max.: | 780 m/min |
| Line speed at 2.5 mm character width: | 385 m/min |
| Max. lines: | 5 |
| Nozzle size | 62 μm |
| Weight | 20 kg |
Description: SHOWROOM MACHINE
Availability: 1 unit
Send inquiry
KOMAX 308 – Tinning Station
Purpose: Tinning station module
Wire cross-section: 0,03 mm2 to 2,5 mm2
Heater power: 850 watta
Description: Second-hand equipment in good condition.
State: Functional.
Availability: 1 unit
Send inquiry
