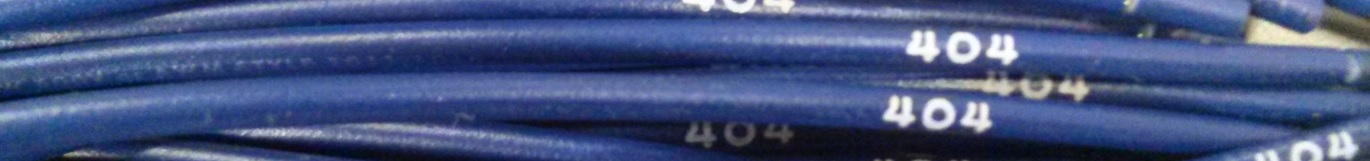

Hot stamp

The Komax 26 marker utilizes the proven and reliable operating method of hot stamping. This marker is designed for use on Komax base machines, but has a simple input signal for signal activation that also allows it to be connected to all common types of automatic wire processing machines.

Komax 26 Hot stamp marker

Technical data

Power supply: 230V, 50/60 Hz (115V, 50/60Hz)
Compressed air: 5-8 bar; consumption approx. 0,5 l/cycle
Temperature: 50-200°C, continuously adjustable
Dimensions: 350x320x500mm
Weight: 18kg
Outer wire diameter: 1.3 do 10mm
Min. wire cross section: approx. 0.35mm²
Max. symbol number: 2×16
