Industrial ink-jet printers
The latest generation of automatic wire processing machines features extreme flexibility and processes at high speeds. These operating conditions put tough requirements on wire marking that can only be met with appropriate solutions. Is the object to mark quicker, smaller, more reliably, with greater resistance or merely more cheaply? Komax has a range of marking systems that ensures the optimum solution for your specific application.
M1630 Jet BC
Technical data
| Integration with Komax: | TopWin 1, TopWin 2, TopWin 3 i Komax HMI |
| Connection: | RS232/Ethernet TCP/IP |
| Max. printing speed: | 7.9 m/s* |
| Font height: | 0.9 – 4.6 mm |
| Max. font height: | 4.6 mm |
| Minimum wire diameter: | 1.1mm |
| Minimum wire cross section: | approx. 0.35mm² |
| Inks: | Non/lightly pigmented |
| Compressed air supply: | - |
ims 295 BC
Technical data
| Integration with Komax: | TopWin/KappaWin |
| Connection: | RS232/Ethernet TCP/IP |
| Max. printing speed: | 8m/s* (315in./s)* |
| Font height: | 1.0mm (0.04in.) |
| Max. font height: | 4.5mm (0.18in.) |
| Minimum wire diameter: | 1.2mm (0.047in.) |
| Minimum wire cross section: | approx. 0.35mm² |
| Inks: | Non/lightly pigmented |
| Compressed air supply: | - |

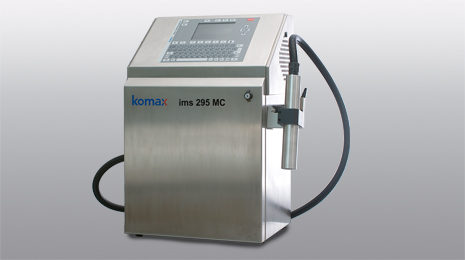

ims 295 MC
Technical data
| Integration with Komax: | TopWin/KappaWin |
| Connection: | RS232/Ethernet TCP/IP |
| Max. printing speed: | 8m/s* (315in./s)* |
| Font height: | 1.0mm (0.04in.) |
| Max. font height: | 4.5mm (0.18in.) |
| Minimum wire diameter: | 1.2mm (0.047in.) |
| Minimum wire cross section: | approx. 0.35mm² |
| Inks: | Pigment |
| Compressed air supply: | 6bar (87psi), filter |
